Luma One

Hardware LumaLink

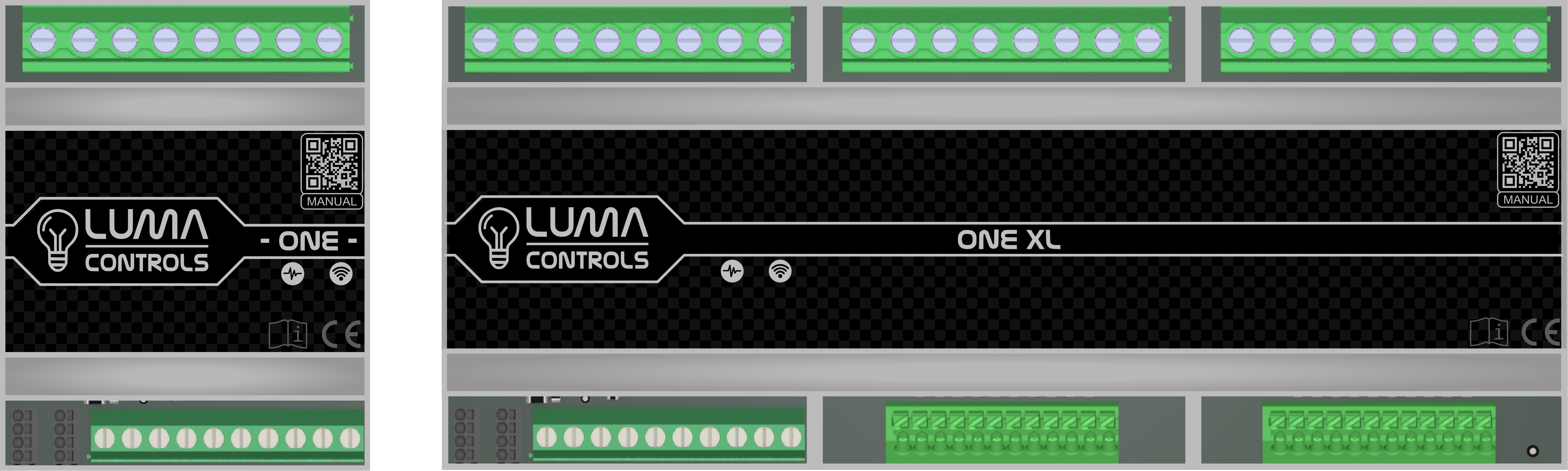

The Luma One and Luma One XL are distributed automation modules forming the physical input/output foundation of the LumaLink Core.

Each module executes configuration and logic locally, ensuring deterministic control and system resilience without reliance on a central controller.

Luma One

Key Features

  • 🔁 Local Execution

    Automation logic and linking run directly on the module.

  • 🔗 Bus-Based Control

    Inputs can control outputs across the entire LumaLink system.

  • 🧠 Integrated Automation

    Scenes, groups, logical conditions and time-based functions supported.

  • 🔌 Extensive I/O Support

    Relays, digital inputs, analog control, metering and LED outputs.

Full specifications

The complete feature list, electrical specifications, wiring diagrams and operating modes are documented in the
Technical Manual.

Typical Applications

Luma One modules are suitable for a wide range of automation scenarios:

  • Lighting control (relay outputs)
  • Shutters and screen (relay outputs)
  • Pushbuttons
  • 0-10V dimming
  • 0–10V control and sensing
  • Digital sensors and actuators
  • Pulse counters and energy monitoring
  • RGB(W), single-color, or dual-white LED strips
  • DMX512 lighting fixtures
  • ..

Downloads

  • 📘 Technical Manual

    Complete installation, wiring and configuration documentation.

    Download Technical Manual →

  • 📗 LumaConfig Manual

    Commissioning and service configuration guide.

    Download LumaConfig Manual →

  • 🔄 Firmware

    Latest firmware

    Version: 1.0.0
    Release Date: 2026-01-05

    Download Manual

    File Details

    Format: .bin
    SHA256: 9c4d2e7a6b3f1c8e5a9d0b7c2e4f6a1b3d8c5e7f9a2b4c6d8e1f3a5b7c9d2e4f

    Firmware Update Procedure

    Always follow the official firmware update procedure described in the Technical Manual. Interrupting a firmware update may render the device temporarily inoperable.
