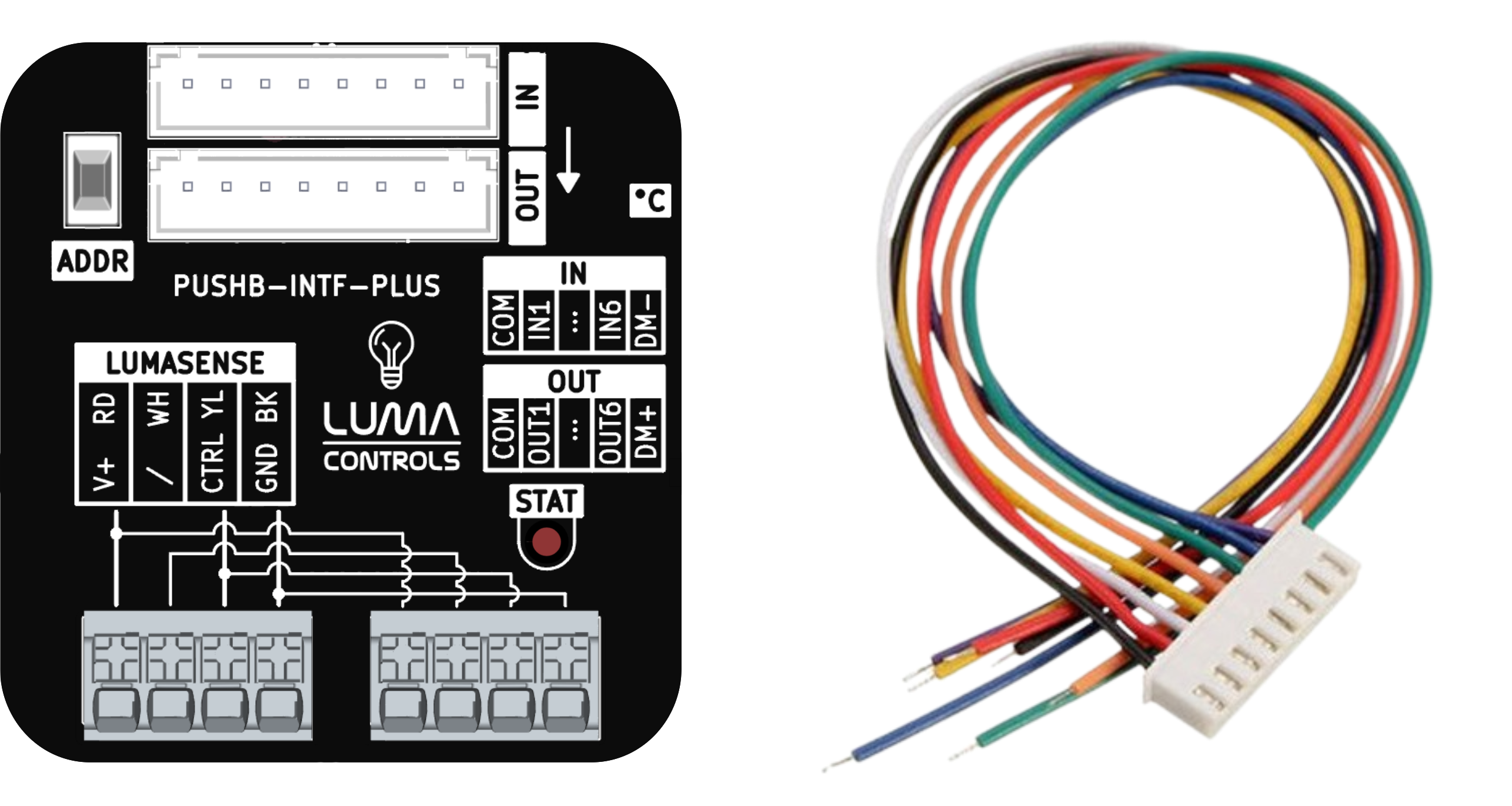

Pushbutton Interface Plus

Hardware LumaSense Bus

A multifunctional LumaSense interface designed primarily for interfacing pushbuttons.

---

Key Features

• 🔘 Inputs

  Up to 6 pushbuttons per interface.

• 💡 Feedback LEDs

  LED feedback outputs.

• 🌡 Temperature Sensor

  Built-in room temperature sensor.

• ⚙️ Additional "Plus" modes

  Digital I/O, analog 0–10V and PWM operation.

Full specifications

The complete feature list, electrical specifications, wiring diagrams and operating modes are documented in the
Technical Manual.

---

Typical Applications

• Interface pushbuttons
• Temperature monitoring
• 0-10V control and sensing
• Digital sensors and actuators
• Dimmer control for third party dimmers
• ..

---

Downloads

• 📘 Technical Manual

  Complete installation, wiring and configuration documentation.

  Download Technical Manual →

---

Related

• Integration layer: LumaSense

---
